Interventional Radiology
Please note : All disposable items are sterile. CE Marked : CE0426 SeeDOS Code for Ordering: product code + gauge + length in cm SeeDOS product Code Example: product COMPLETE CHIBA, 21 gauge, 15 cms =CCH2115
Please click on the following to go to detailed product information :
Definitions : Logo : Top Core is available as an option for most Guillotine type, soft tissue, biopsy needles. Where Top Core is available it is indicated by the logo. Please enquire.
Logo: Echonox ultrasound echogenic steel is available for most types of biopsy needles. Where Echonox is available it is indicated by the logo. Please enquire. MRI Compatible : MR Clear is available on certain types of biopsy needles go to MRI Biopsy
NEW MULTI-CORE® , SeeDOS Codes : MLC : Needle gauges 14,16,18, 20 available, Needle lengths 11,15,20 and 25 cm Disposable Automatic Soft Tissue Biopsy device. Minimum Order : 1 box of 15 Available in versions : Standard, DC Detachable Cannula and SET TAC
SeeDOS Ltd - MultiCore Disposable Automatic Soft Tissue Biopsy Device Brochure.pdf
SeeDOS Ltd - MULTICORE Instructions.pdf
SeeDOS Ltd - MULTICORE TC, SET-TAC Biopsy Instrument, User Instructions.pdf
Complete Chiba, SeeDOS Codes: CCH : Needle gauges 14,16,18,20,21,22,23,25 available, Needle lengths 7,9,11,15, 20 and 25 cm available, For Antenatal Diagnostics, Cytologic Biopsy and Medicine or Anaesthesia injection before prostate biopsy. Minimum order : 1 box 20, 25, 30 and 60 pcs.
SeeDOS Code for Ordering: product code + gauge + length in cm SeeDOS product Code Examples: product COMPLETE CHIBA, 21 gauge, 15cms =CCH2115 product COMPLETE CHIBA, 14 gauge, 7cms =CCH1407
SeeDOS Ltd - COMPLETE CHIBA Disposable Chiba-Type Cytologic Biopsy Needle - brochure -pdf
SeeDOS Ltd - Complete Chiba Instructions - pdf
SeeDOS Ltd - COMPLETE-CHIBA Clinical Literature.pdf SeeDOS Ltd - COMPLETE-CHIBA_2 Clinical Literature.pdf SeeDOS Ltd - COMPLETE-CHIBA_3 Clinical Literature.pdf
GO to BIOPSY Quotation Request Form
EcoChiba - SeeDOS Codes: ECX : Needle gauges 18,20,21,22 and 25 available, Needle lengths 5,7,9,11,15 or 20 cm available, Echo-Reflecting Chiba-Type Cytologic Biopsy Needle
SeeDOS Ltd - ECOCHIBA Echo-Reflecting Chiba-Type Cytologic Biopsy Needle - brochure.pdf
SeeDOS Ltd - ECOCHIBA Instructions.pdf
SeeDOS Ltd - ECHO-CHIBA (ECHONOX) Clinical Literature.pdf GO to BIOPSY Quotation Request Form Fast Gun, SeeDOS Codes: SFG001 : Fully automatic reusable gun for tru-cut biopsy SeeDOS Ltd - FAST GUN Instructions.pdf
SeeDOS Ltd - FAST-GUN_FAST-CUT Clinical Literature.pdf SeeDOS Ltd - FAST-GUN_FAST-CUT_2 Clinical Literature.pdf GO to BIOPSY Quotation Request Form Fast-Cut, SeeDOS Codes: FSC : Needle gauges 14,16 and 18 available, Needle lengths 15,20 and 25 cm available, Disposable needle for FAST-GUN automatic reusable biopsy gun. Minimum order : 1 box 20, 25 and 30 pcs.
SeeDOS Ltd - FASTCUT Instructions.pdf
SeeDOS Ltd - FAST-GUN_FAST-CUT Clinical Literature.pdf
SeeDOS Ltd - FAST-GUN_FAST-CUT_2 Clinical Literature.pdf
GO to BIOPSY Quotation Request Form
Fast-Cut B, SeeDOS Codes: FSC...B : Needle gauges 14, 16, 18 and 20 available, Needle lengths 16, 20 and 25cm available Disposable biopsy needle compatible with Bard MAGNUM™ automatic biopsy device. Minimum order : 1 box of 25 pcs.
SeeDOS Ltd - FAST-CUT B Disposable Biopsy Needle for Automatic Gun brochure - pdf
SeeDOS Ltd - FAST-CUT-B Instructions.pdf GO to BIOPSY Quotation Request Form NEW Fast-Cut C, SeeDOS Codes: FSC...CA or FSC...CB : Needle gauges 14, 16, 18, 20 and 21g available, Needle lengths 10, 12, 16, 20, 25 and 30cm available Disposable biopsy needle compatible with Bard MAGNUM™ ( type B ) and Angiotec PROMAG™ ULTRA ( type A ) automatic biopsy devices. Minimum order : 1 box of 25 pcs.
SeeDOS Ltd - FAST-CUT C Disposable Biopsy Needle for Automatic Gun brochure - pdf
GO to BIOPSY Quotation Request Form Colt, SeeDOS Codes: CLT & CLT _DC ( Detachable Cannula ): Needle gauges 14,16 and 18 available, Needle lengths 11,15,20 or 25 cm available Fully automatic disposable gun for tru-cut biopsy. Minimum order : 1 box 20, 25 and 30 pcs.
SeeDOS Ltd - COLT Disposable Automatic Soft Tissue Biopsy Instrument - brochure - pdf
SeeDOS Ltd - COLT & Needle Guide AG Instructions.pdf
SeeDOS Ltd - COLT DC Version Instructions.pdf
SeeDOS Ltd - COLT TC - MR SET Instructions.pdf
SeeDOS Ltd - COLT Clinical Literature.pdf GO to BIOPSY Quotation Request Form Spring-Cut, SeeDOS Codes: SPG : Needle gauges 14,16 and 18 available, Needle lengths 11,15,20 or 25 cm available Semi automatic, disposable needle device with handle for tru-cut biopsy. Minimum order : 1 box 20,25 and 30 pcs.
SeeDOS Ltd - SPRING CUT Semiautomatic Soft Tissue Biopsy Needle - brochure - pdf
SeeDOS Ltd - Spring Cut and Guided Needle Instructions.pdf
SeeDOS Ltd - Spring Cut DC Version Instructions.pdf
SeeDOS Ltd - SRING CUT TC-MR SET Versions Instructions.pdf
SeeDOS Ltd - SPRING CUT TC , SET-TAC Biopsy Instrument, User Instructions, rev 2 .pdf
GO to BIOPSY Quotation Request Form Hand-Cut, SeeDOS Codes: HND : Needle gauges 14,16 and 18 available, Needle lengths 11,15,20 or 25 cm available Semi automatic, disposable needle device with handle for tru-cut biopsy. Minimum order : 1 box 20, 25 and 30 pcs.
brochure - pdf
GO to BIOPSY Quotation Request Form Bio-Cut, SeeDOS Codes: SBC : Needle gauges 14,16 and 18 available, Needle lengths 11,15,20 or 25 cm available Semi automatic, disposable needle device with handle for tru-cut biopsy. Minimum order : 1 box 20,25 and 30 pcs.
SeeDOS Ltd - BIO CUT Disposable Guillotine Type Soft Tissue Biopsy Needle - brochure - pdf
SeeDOS Ltd - BIO-CUT Instructions.pdf
SeeDOS Ltd - BIO-CUT Clinical Literature.pdf GO to BIOPSY Quotation Request Form Auto-Shot, SeeDOS Codes : PSTASH1 : Semi-automatic Gun for use with Bio-Cut ( see above )
Full-Opty, SeeDOS Codes : FLP : Needle gauges 16,17,18,19,20,21 and 22 available, Needle lengths 9,11,15 and 20 cm available, Modified Menghini Biopsy Needle with IFR cell rescue. Particularly suitable for lung Fine Needle Aspiration ( FNA ) biopsy.
SeeDOS Ltd - FULL OPTY Modified Menghini Biopsy Needle with IFR Cell Rescue - brochure.pdf
SeeDOS Ltd - FULL-OPTY Instructions - pdf
SeeDOS Ltd - FULL OPTY Instructions - Rev 2.pdf
GO to BIOPSY Quotation Request Form Ata-Cut - SeeDOS Codes: ATC : Needle gauges 16,17,18,19,20 and 21 available, Needle lengths 9,11,15,20 or 25 cm available, Gelman type Biopsy Needle ( modified Menghini )
SeeDOS Ltd - ATA-CUT Gelman Type Biopsy Needle ( Menghini Modified) - brochure.pdf
SeeDOS Ltd - ATA-CUT Instructions.pdf

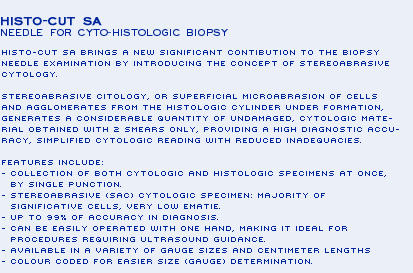

GO to BIOPSY Quotation Request Form Histo-Cut - SeeDOS Codes: HTC : Needle gauges 16,17,18,19,20 and 21 available, Needle lengths 9,11,15,20 or 25 cm available, Needle for Cyto-Histologic Biopsy
brochure - pdf

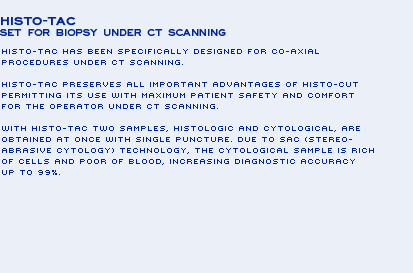

GO to BIOPSY Quotation Request Form Histo-Tac - SeeDOS Codes: HTT : Needle gauges 16,17,18,19,20 and 21 available, Needle lengths 9,11,15,20 or 25 cm available, Needle Set for Biopsy under CT Scanning
GO to BIOPSY Quotation Request Form

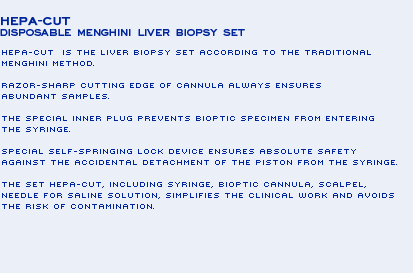

Hepa-Cut - SeeDOS Codes: HPC : Needle gauges 16,17 and 18 available, Needle length 9cm available, Disposable Menghini Liver Biopsy Set
SeeDOS Ltd - HEPA-CUT Disposable Menghini Liver Biopsy Set - brochure.pdf
SeeDOS Ltd - HEPA-CUT Instructions.pdf

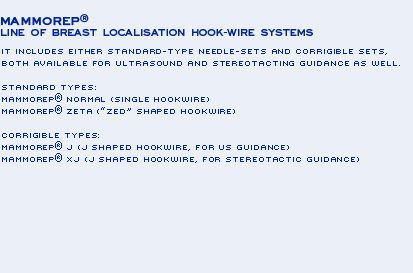

GO to BIOPSY Quotation Request Form MammoRep - SeeDOS Codes: MammoRep Normal : 21 gauge, length 6,9,11 and 15 cm - SeeDOS Codes : MRN2106,MRN2109,MRN2111 and MRN2115 MammoRep Normal plus : 21 gauge, length 6,9,11 and 15 cm - SeeDOS Codes : MRN2106+,MRN2109+,MRN2111+ and MRN2115+ MammoRep Zeta : 20 gauge, length 6,9,11 and 15 cm - SeeDOS Codes : MRZ2006,MRZ2009,MRZ2011 and MRZ2015 MammoRep Zeta plus :20 gauge, length 6,9,11 and 15 cm - SeeDOS Codes : MRZ2006+,MRZ2009+,MRZ2011+ and MRZ2015+ Line of Breast Localisation Hook-Wire Systems SeeDOS Ltd - MAMMOREP_N-Z Instructions.pdf
SeeDOS Ltd - MAMMOREP Clinical Literature.pdf GO to BIOPSY Quotation Request Form MammoRep Loop - SeeDOS Codes : MammoRep Loop MLE : 20 gauge, length 6,9,11 and 15 cm - SeeDOS Codes : MLE2006,MLE2009,MLE2011 and MLE2015 MammoRep Loop MLX : 20 gauge, length 6,9,11 and 15 cm - SeeDOS Codes : MLX2006,MLX2009,MLX2011 and MLX2015 Repositionable Non-Displacing Breast Localization Loop-Wire Needle-Set
SeeDOS Ltd - MAMMOREP Clinical Literature.pdf GO to BIOPSY Quotation Request Form SGL - Disposable Galactography Set - SeeDOS Codes: SGL 1 or 2 : Needle lengths 1 or 2 cm available, 27 gauge S, M and L. Short, Medium and Long connection line Disposable Galactography Set
SeeDOS Ltd - Galactography Set SGL Instructions.pdf
GO to BIOPSY Quotation Request Form X-Screen - SeeDOS Codes: Depth Size 1cm : XSC01, Depth Size : 3cm : XSC03 Screen for localisation of impalpable Breast lesions SeeDOS Ltd - X-SCREEN Instructions.pdf
GO to BIOPSY Quotation Request Form PIA - Needles for percutaneus injection for intratumoural ablation- SeeDOS Codes: PIA-A : 20g, length 9,15 and 20cm - SeeDOS Code example : PIA200904 ( 04*,12* or 20*cm - *length of perforated tract )( OPEN POINT ) PIA-A : 21g, length 9,15 and 20cm - SeeDOS Code example : PIA210904 ( 04*,12* or 20*cm - *length of perforated tract )( OPEN POINT ) PIA-A : 22g, length 9,15 and 20cm - SeeDOS Code example : PIA220904 ( 04*,12* or 20*cm - *length of perforated tract )( OPEN POINT )
PIA-A plus+ ( ECHONOX ) : 20g, length 9,15 and 20cm - SeeDOS Code example : PAE200904 ( 04*,12* or 20*cm - *length of perforated tract )( OPEN POINT ) PIA-A plus+ ( ECHONOX ) : 21g, length 9,15 and 20cm - SeeDOS Code example : PAE210904 ( 04*,12* or 20*cm - *length of perforated tract )( OPEN POINT ) PIA-A plus+ ( ECHONOX ) : 22g, length 9,15 and 20cm - SeeDOS Code example : PAE220904 ( 04*,12* or 20*cm - *length of perforated tract )( OPEN POINT )
PIA-B : 20g, length 9,15 and 20cm - SeeDOS Code example : PIB200904 ( 04*,12* or 20*cm - *length of perforated tract )( CLOSED POINT ) PIA-B : 21g, length 9,15 and 20cm - SeeDOS Code example : PIB210904 ( 04*,12* or 20*cm - *length of perforated tract )( CLOSED POINT ) PIA-B : 22g, length 9,15 and 20cm - SeeDOS Code example : PIB220904 ( 04*,12* or 20*cm - *length of perforated tract )( CLOSED POINT )
PIA-B plus+ ( ECHNONOX ) : 20g, length 9,15 and 20cm - SeeDOS Code example : PBE200904 ( 04*,12* or 20*cm - *length of perforated tract )( CLOSED POINT ) PIA-B plus+ ( ECHNONOX ) : 21g, length 9,15 and 20cm - SeeDOS Code example : PBE210904 ( 04*,12* or 20*cm - *length of perforated tract )( CLOSED POINT ) PIA-B plus+ ( ECHNONOX ) : 22g, length 9,15 and 20cm - SeeDOS Code example : PBE220904 ( 04*,12* or 20*cm - *length of perforated tract )( CLOSED POINT )
SeeDOS Ltd - PIA Instrument-Needle for Percutaneous Injection of Alcohol - brochure.pdf
SeeDOS Ltd - PIA Instructions.pdf

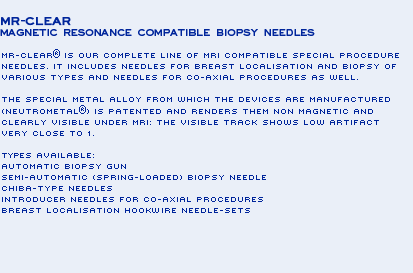

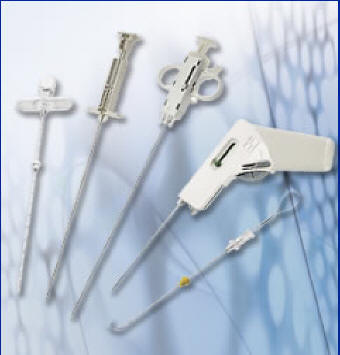

SeeDOS Ltd - PIA Clinical Literature.pdf GO to BIOPSY Quotation Request Form MR-Clear - SeeDOS Codes: MammoRep XJ MR ( Clear ) MRX : 20 gauge, lengths available 6, 7, 9,11 and 15cm : SeeDOS codes : MRX2006MR, MRX2007MR, MRX2009MR, MRX2011MR & MRX2015MR Magnetic Resonance compatible Biopsy Needles
GO to BIOPSY Quotation Request Form 3RS - SeeDOS Code : 3R-S Special syringe for Cytological Sampling
|
